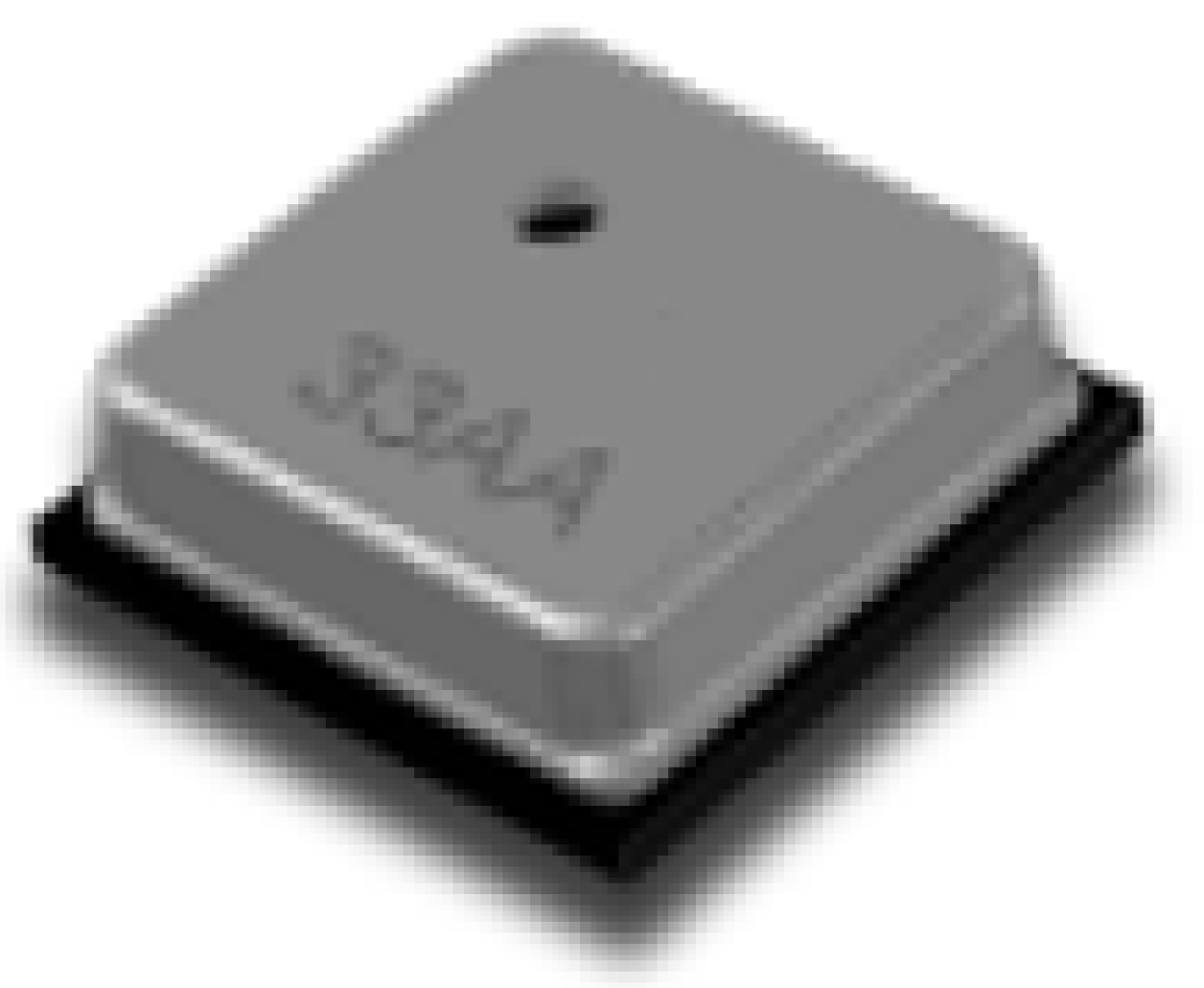

HS4001

RENESAS, HS4001, Sensors, Transducers/Humidity, Moisture Sensors, High Performance Relative Humidity and Temperature Sensor with Digital Output, Humidity Tolerance: ±1.5%RH, Voltage - Supply: 1.71V~3.6V, Resolution: 14bit (programmable 8, 10, 12, 14 bits), Temperature Range: -40℃~+125℃, Humidity: 0%RH~100%RH, Temperature Tolerance: ±0.2℃, Interface: I2C, Features: Temperature compensation; Factory calibration; Automotive grade, AEC-Q100 qualified, Grade 2 (-40℃ to +105℃); Industrial grade, JEDEC qualified (-40℃ to +125℃); Digital I²C output with CRC checksum; Fast RH response time: 4 seconds; Very low current consumption (0.3μA average @8-bit, 0.62μA average @14-bit); Excellent stability; Highly robust protection., LGA-8(2.5x2.5). Climate control systems, Instrumentation, Home appliances, Weather stations, Building automation, HVAC systems, Medical equipment, Data logging systems, LCSC提携先在庫あり。
